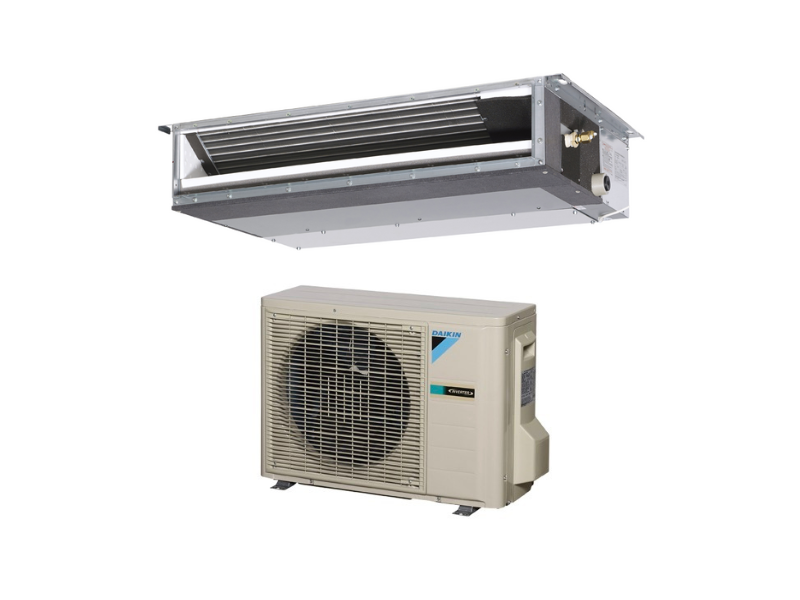

Daikin 3.5kW Inverter Bulkhead System FDXS35LVMA / RXS35LBVMA

DaikinModel: FDXS35LVMA / RXS35LBVMA

Price:
Sale price$1,717.00 Regular price$1,965.00

Overview

Daikin 3.5kW Inverter Bulkhead System FDXS35 with Wireless Controller

Indoor : FDXS35LVMA
Outdoor : RXS35LBVMA
Controller : Wireless controller included

Features

Ultra Compact
Compact form factor – measuring at 200mm (H) and 620mm (D), makes it suitable for a variety of applications.

Whisper-Quiet
Noise levels are truly discrete and whisper quiet at 35dBA (25 Class Model).

Auto-Fan-Speed
An optimal fan speed is automatically selected to suit the set temperature for a more efficient operation.

Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.

Night Set Mode
Temperatures are gently adjusted to prevent excessive cooling/heating for a more pleasant night’s sleep.

Standby Power Function
Automatically reduces energy consumption when the system is not in use.

Specifications

Indoor Unit FDXS35LVMA
Outdoor Unit RXS35LBVMA
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 3.4
Heat (kW) 4.0
Capacity Range
Cool (kW) 1.4 ~ 3.8
Heat (kW) 1.4 ~ 5.0
Power Input (Rated)
Cool (kW) 1.03
Heat (kW) 1.14
EER/COP 3.30 / 3.51
Drain Size (mm) ID 20 / OD 26
Duct Sizes
Supply (mm) 153 x 860 (Flange)
Return (mm) 160 x 780 (Flange)
Dimensions (HxWxD)
Indoor (mm) 200 x 900 x 620
Outdoor (mm) 550 x 765 x 285
Weight
Indoor (kg) 27
Outdoor (kg) 34
Refrigerant Type R410A
Max Pipe Length (m) 20
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 9.52
Connection Type Flare
Ambient Temperature
Cool (°C) 10 ~ 46
Heat (°C) -15 ~ 18
Indoor Airflow Rate
(l/s) 200
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 37
Heat (dBA) 37
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 49
Heat (dBA) 49
Outdoor EPA Sound Power Level (H)
(dBA) 63
