Overview

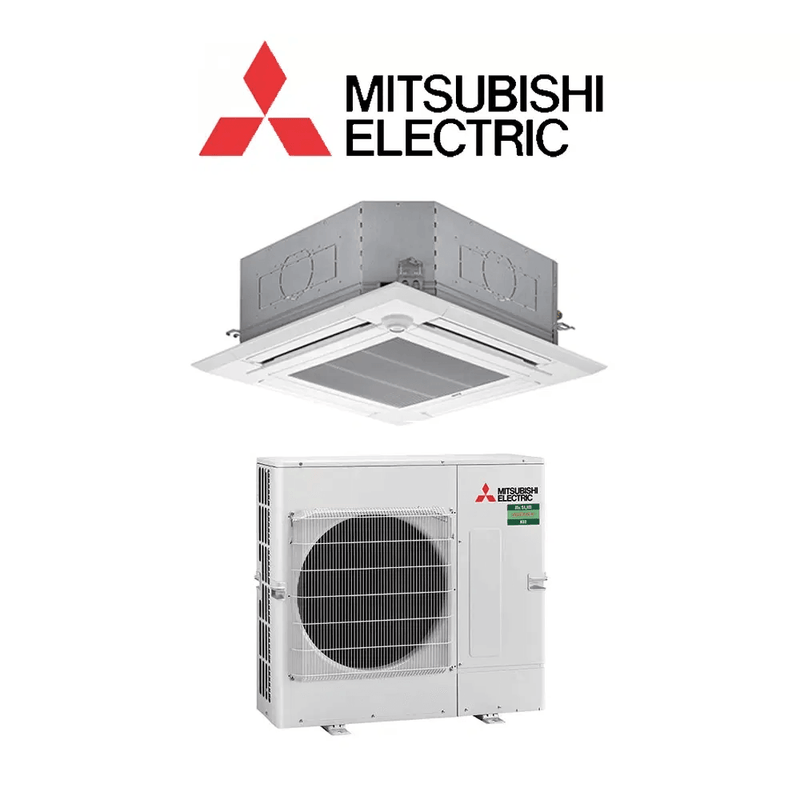

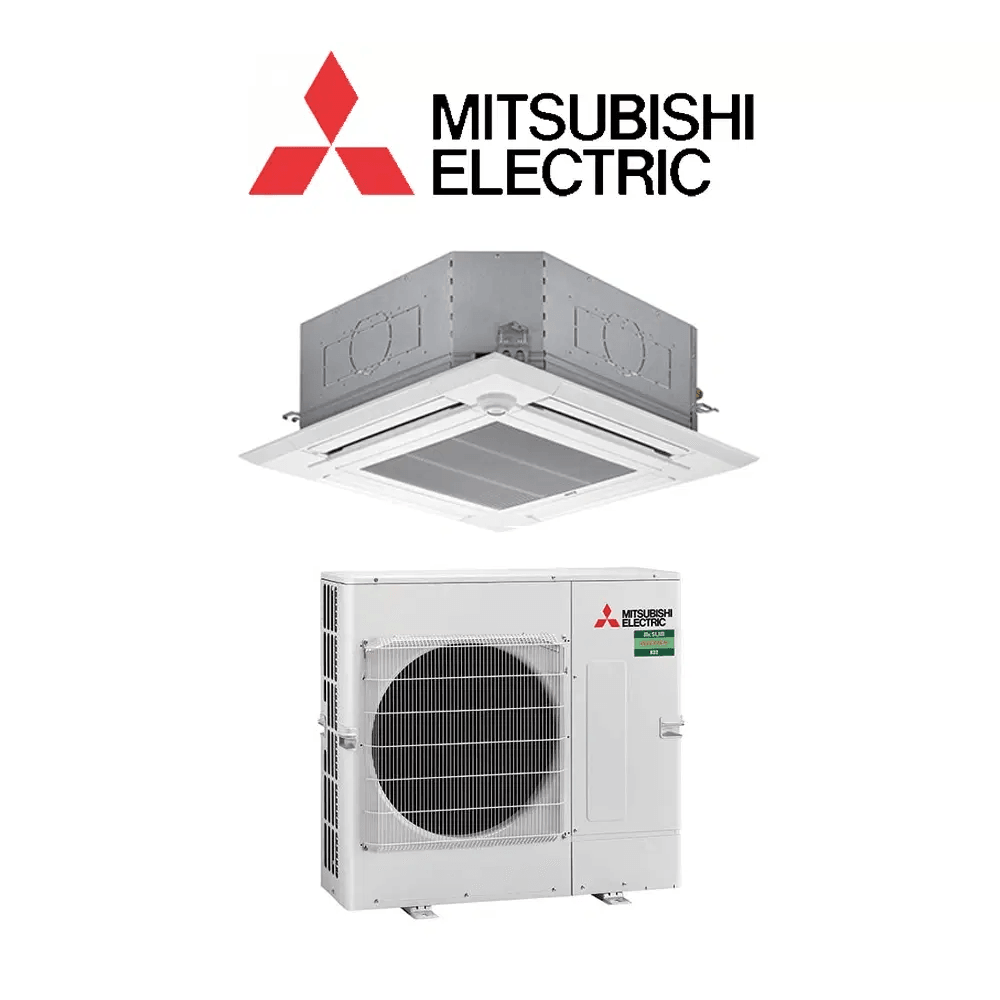

MITSUBISHI Cassette System 12.5kW PLA-M125EA-A.TH / PLP-6EALM
The Mitsubishi Cassette System 12.5kW offers powerful climate control with a sleek, unobtrusive design. Engineered for efficiency, it boasts a 12.5kW cooling capacity and a 14.0kW heating capacity, perfect for larger spaces. Featuring a wireless controller and R32 Power Inverter, it provides seamless operation and energy savings. The system's robust construction and advanced technology ensure reliable performance in the Australian climate.
Indoor: PLA-M125EA-A
Outdoor: PUZ-ZM125YKA-A
Specifications
| Indoor Unit | PLA-M125EA-A | |||
| Outdoor Unit | PUZ-ZM125YKA-A | |||
| Power Supply | V / A / Hz | 400 / 3 / 50 | ||
| Cooling | Capacity | min nominal max | kW | 5.5 12.5 14.0 |
| Total input | kW | 3.55 | ||
| AEER/EER | 3.37 / 3.52 | |||
| Running current (Rated) | A | 5.9 | ||
| Sound Pressure Level | In (Lo Mid Hi) | dB(A) | 33 37 41 44 | |
| Out | dB(A) | 50 | ||
| Air Volume (In) Lo Mid Hi | L/s | 350 417 467 517 | ||
| Heating | Capacity | min nominal max | kW | 5.0 14.0 16.0 |
| Input | kW | 3.58 | ||
| ACOP/COP | 3.75 / 3.91 | |||
| Running current (Rated) | 5.9 | |||
| Sound Pressure Level | In (Lo Mid Hi) | 33 37 41 44 | ||
| Out | 52 | |||
| Air Volume (In) Lo Mid Hi | 350 417 467 517 | |||
| Max. Running Current | A | 12.16 | ||
| Indoor Unit | Dimensions | H x W x D | mm | 298 x 840 x 840 |
| Weight | kg | 27 | ||
| Outdoor Unit | Dimensions | H x W x D | mm | 1138 x 1050 x 330 |
| Weight | kg | 114 | ||
| Panel | Dimensions | H x W x D | mm | 40 x 950 x 950 |
| Weight | kg | 5 | ||
| Refrigerant | Pipe size | Liquid | mm | Ø9.52 |
| Gas | mm | Ø15.88 | ||
| Max. Piping Height | m | 30 | ||
| Max. Piping Length | m | 75 | ||
| Operating Range | Cooling | C | -5(15) 52 | |
| Heating | C | -20 21 | ||
