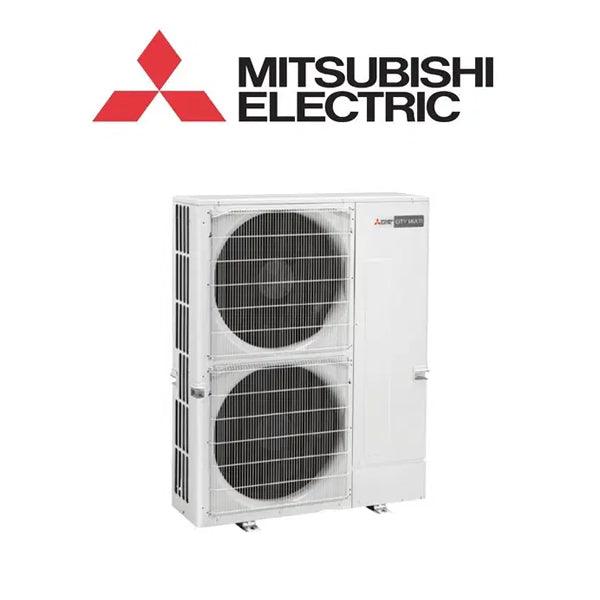

Mitsubishi Electric PUMY-P200YKMD-AR1 22.4 kW Outdoor Unit
Experience the power and efficiency of the Mitsubishi Electric PUMY-P200YKMD-AR1, a 22.4 kW outdoor unit designed for optimal cooling and heating. With its twin fan heat pump VRF system, this robust unit ensures reliable performance even in extreme conditions. Built with high-quality materials and advanced technology, it offers exceptional energy efficiency and precise climate control, making it the ideal choice for commercial and large residential applications.
Model: PUMY-P200YKMD
Power Source: 1-phase 220-230-240 V, 50 Hz; 3-phase 380-400-415 V, 50 Hz
Specifications
| SERIES | PUMY-P (Twin Fan) | ||||
| Model | PUMY-P200YKMD | ||||
| Power Source | VKMD: YKMD: | 1-phase 220-230-240 V, 50 Hz; 3-phase 380-400-415 V, 50 Hz | V, 60 Hz | ||
| Cooling Capacity | kW | 22.4 | |||
| (Nominal)*1 | Power Input | kW | 6.22 | ||
| Current Input | A | 10.16 9.65 9.30 | |||
| EER | kW | 3.60 | |||
| AEER | kW | 3.17 | |||
| Temperature Range of Cooling | Indoor | W.B | 15.0 ~ 24.0 C | ||
| Outdoor | D.B | -5.0 ~ 52.0C *4 *5 | |||
| Heating Capacity | kW | 25.0 | |||
| (Nominal)*2 Temperature Range of Heating | Power Input | kW | 6.00 | ||
| Current Input | A | 9.80 9.31 8.98 | |||
| COP | kW | 4.17 | |||
| ACOP Indoor | kW W.B | 3.78 | |||
| 15 ~ 27 C | |||||
| Outdoor | D.B | -20 ~ 15 C | |||
| Indoor Unit Connectable Sound Pressure Level (measured in anechoi | Total Capacity | 50% to 130% of Outdoor Unit Capacity | |||
| Model/Quantity c room) | dB | P15-P200/12 | |||
| 57/61 | |||||
| Refrigerant Piping Diameter | Liquid Pipe | mm (in.) | 9.52 (3/8) Flare *8 | ||
| Gas Pipe | mm (in.) | 19.05 (3/4) Flare | |||
| Fan | Type x Quantity | Propeller Fan x 2 | |||
| Airflow Rate | m3/min | 134 | |||
| L/s | 2,233 | ||||
| cfm | 4,732 | ||||
| Control, Driving Mechanism | DC Control | ||||
| Motor Output | kW | 0.20 + 0.20 | |||
| Compressor | Type x Quantity | Scroll Hermetic Compressor x 1 | |||
| Manufacturer | Mitsubishi Electric Corporation | ||||
| Starting Method | Inverter | ||||
| Motor Output | kW | 5.3 | |||
| External Finish External Dimension (H x W x D) | mm | Galvanised Steel Sheet Munsell No. 3Y 7.8/1. | 1 | ||
| 1,338 x 1,050 x 330 (+25) | |||||
| Protection Devices | High Pressure Protection | High Pressure Switch | |||
| Inverter Circuit (COMP./FAN) | Overcurre | nt Detection, Overheat Detection (Heat Sink | Thermistor) | ||
| Compressor | Compressor Thermistor, Overcurrent Detectio | n | |||
| Fan Motor | Overheating, Voltage Protection | ||||
| Refrigerant | Type x Original Charge | R410A x 7.3kg | |||
| Control | Linear Expansion Valve | ||||
| Net Weight | kg | 138 *9 | |||
| Heat Exchanger | Cross Fin and Copper Tube | ||||
| HIC Circuit (HIC: Heat Inter-Changer) | HIC Circuit | ||||
| Defrosting Method Drawing | External | Reversed Refrigerant Circuit | |||
| RK01J635 | |||||
| Wiring | VG79J111 | ||||
| Standard Attachment Optional Parts | Document | Installation Manual | |||
| Accessory | Ground Lead Wire x 1 | ||||
| Joint: CMY-Y62-G-E Header: CMY-Y64/68-G-E | |||||
