Mitsubishi Heavy Industries 5kW Mid Static Inverter Ducted System FDUM50ZSXAWVH

Mitsubishi Heavy IndustriesModel: FDUM50VH / SRC50ZMXA-S

Price:
Sale price$2,444.00 Regular price$2,797.00

🚚 Check Delivery/Pickup Options For Your Postcode

Overview

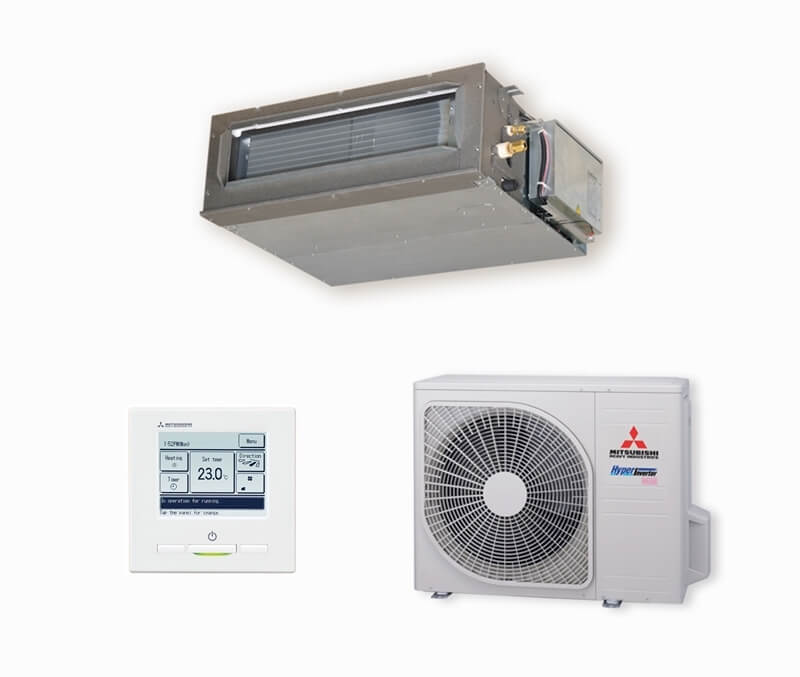

Mitsubishi Heavy Industries FDUM50VH / SRC50ZMXA-S 5kW Mid Static Ducted System | Single Phase

Indoor: FDUM50VH

Outdoor: SRC50ZMXA-S

Backlit Controller: RC-EXZ3A

Specifications

Capacity 5.0 KW
Set FDUM50ZMXAVH
Indoor FDUM50VH
Outdoor SRC50ZMXA-S
Power Source (Outdoor Unit) 1 Phase 240V 50Hz
*Operation Data Nominal Capacity Range Cooling T1 (kW) 5.0 (2.2-5.6)
Heating H1 (kW) 5.4 (0.6-6.3)
Heating H2 (kW) 4.3
Power Consumption Cooling T1 (kW) 1.56
Heating H1 (kW) 1.70
Max Power Consumption (kW) 2.90
Running Current Cooling T1 (A) 7.00
Heating H1 (A) 7.60
Inrush Current, Maximum Current (A) 5, 15
EER Cooling T1 3.21
COP Heating H1 3.18
Sound Power Level (JS C9612) Outdoor dB(A) 63
Sound Pressure Level (JS C9612) Indoor dB(A) P-Hi:37 Hi:32 Me:29 Lo:26
Outdoor dB(A) 50
External Dimensions (HXWXD) Indoor (mm) 280x950x635
Outdoor(mm) 640×800(+71)x290
Net Weight Indoor (Kg) 29
Outdoor (Kg) 45
Supply Air Connection (mm) 170×680
Return Air Connection (mm) 200×660
External Static Pressure (Max) (Pa) 100
Airflow Indoor (Cooling) (L/s) P-Hi: 217 Hi: 167 Me: 150 Lo: 133
Indoor (Heating) (L/s) P-Hi: 217 Hi: 167 Me: 150 Lo: 133
Refrigerant (Type, Amount, Pre-charge Length) Quantity (Kg) (R410A) 1.5
Pre Charged To Pipe Length (m) 15
Installation Data Refrigerant Piping Liquid Line (mm) Ø6.35
Gas Line (mm) Ø12.7
Connection Method Flare Connection
Maximum Pipe Length (One Way) (mm) 30
Max vertical height diff. between O.U. and I.U. 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. )
Controller RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Motion Sensor (Optional) LB-KIT
Demand response (AS4755) Yes
