DAIKIN FDYAN100A-CV 10.0kW Inverter Ducted System FDYAN100AV1 / RZA100CY1 | 3 Phase
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
Indoor : FDYAN100AV1
Outdoor : RZA100CY1

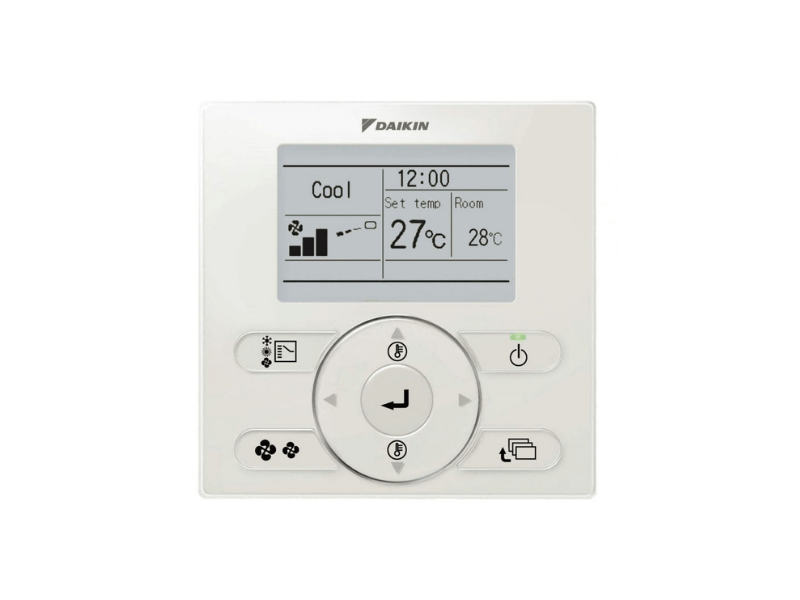

Controller : BRC1E63

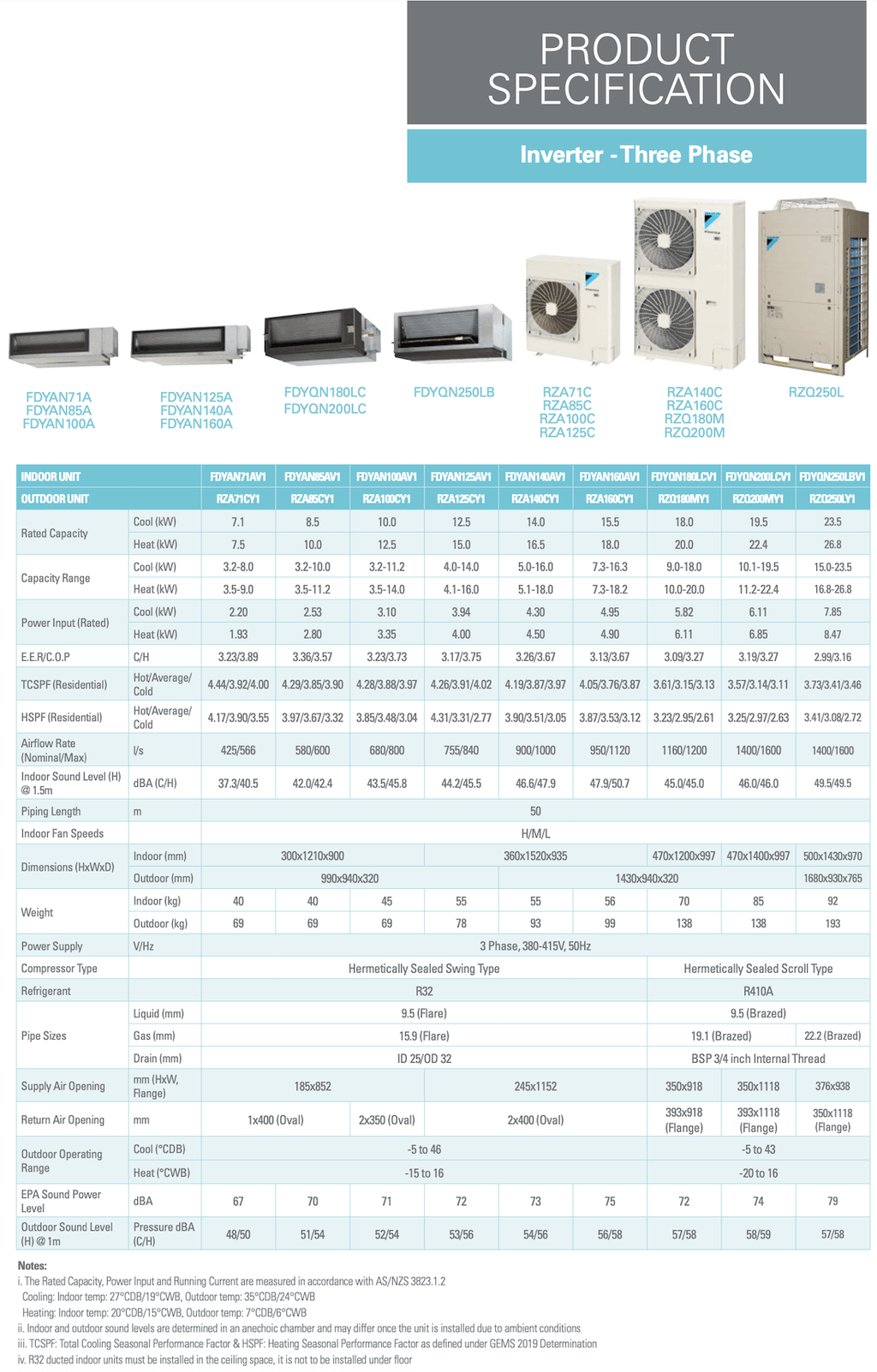

|Rated Capacity||Cool (kW)||10.0|
|Capacity Range||Cool (kW)||3.2-11.2|
|Power Input (Rated)||Cool (kW)||3.10|
|Air Flow Rate (Rated)||I/S||680|
|Indoor Sound Level (@1.5m)||dBA||43.5/45.8|
|Indoor Fan Speeds||H/M/L|
|Dimensions (HxWxD)||Indoor (mm)||360x1520x935|
|Power Supply||V/Hz||3 Phase, 380-415V, 50Hz|
|Compressor Type||Hermetically Sealed Swing Type|
|Pipe Sizes||Liquid (mm)||9.5 (Flared)|
|Gas (mm)||15.9 (Flared)|
|Drain (mm)||ID 25 / OD 32|
|Supply Air Opening||mm (HxW, Flange)||185x852|
|Return Air Opening||mm (Oval)||2x350 (Oval)|
|Outdoor Operating Range||Cool (°CDB)||- 5 to 46|
|Heat (°CWB)||- 15 to 16|
|EPA Sound Power Level||dBA||71|
|Outdoor Sound Level (H) @1m||Pressure dBA (C/H)||52/54|
