Daikin 12.5kW 3 Phase Inverter Ducted Air Conditioner FDYAN125

DaikinModel: 3P-FDYAN125AV1 / RZA125CY1

Price:
Sale price$5,179.00 Regular price$5,928.00

🚚 Check Delivery/Pickup Options For Your Postcode

Overview

DAIKIN FDYAN125A-CV 12.5kW Inverter Ducted System | 3 Phase

Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Indoor : FDYAN125AV1
Outdoor : RZA125CY1
Controller : BRC1E63

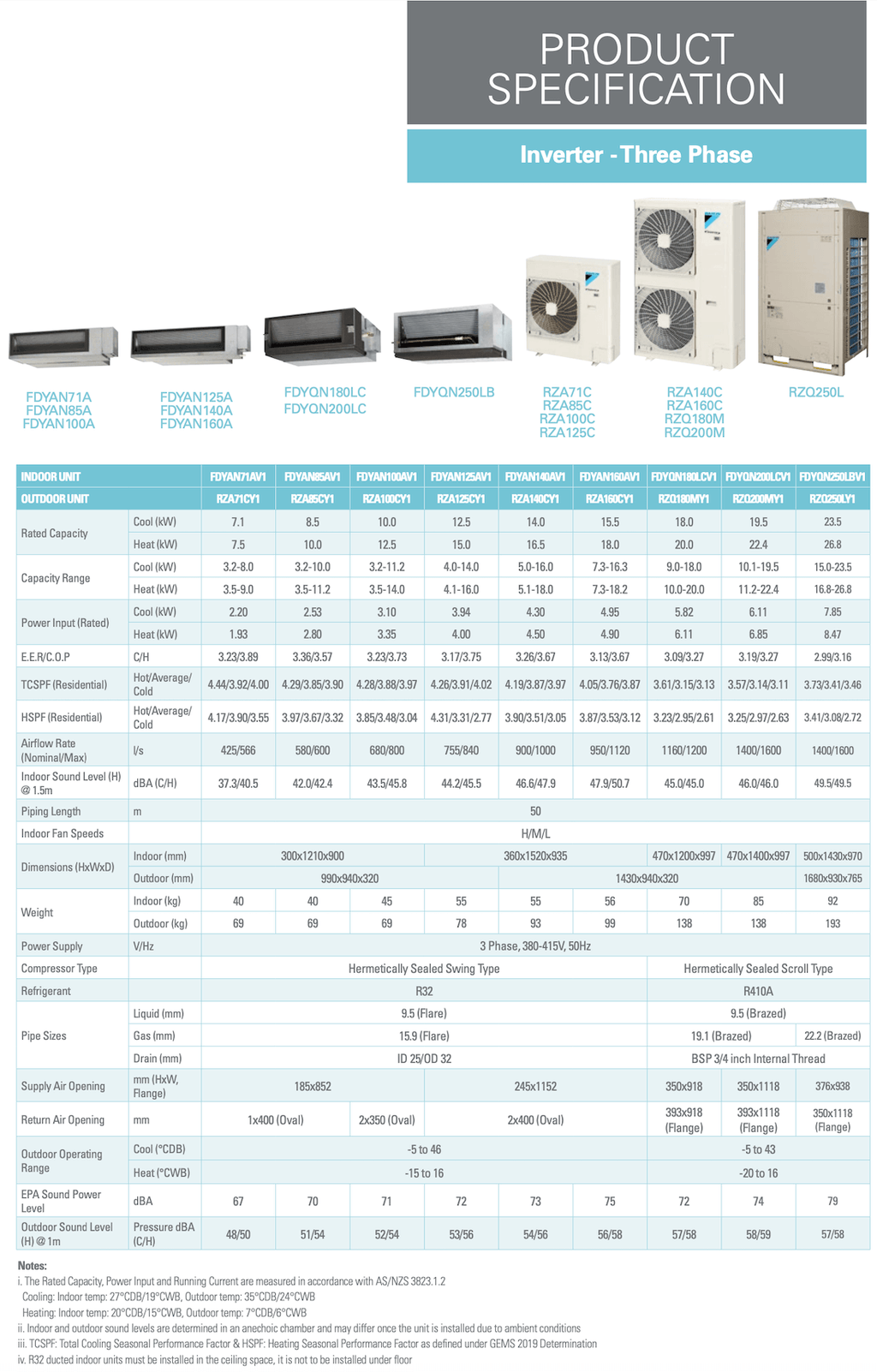

Specifications

INDOOR UNIT FDYAN125AV1
OUTDOOR UNIT RZA125CY1
Rated Capacity Cool (kW) 12.5
Heat (kW) 15.0
Capacity Range Cool (kW) 4.0-14.0
Heat (kW) 4.1-16.0
Power Input (Rated) Cool (kW) 3.94
Heat (kW) 4.00
E.E.R./C.O.P. Cool/Heat 3.17/3.75
Air Flow Rate (Rated) I/S 755
Indoor Sound Level (@1.5m) dBA 44.2/45.5
Piping Length (m) 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 360x1520x935
Outdoor (mm) 990x940x320
Weight Indoor(kg) 55
Outdoor(kg) 78
Power Supply V/Hz 3 Phase, 380-415V, 50Hz
Compressor Type   Hermetically Sealed Swing Type
Refrigerant   R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
Gas (mm) 15.9 (Flared)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 245x1152
Return Air Opening mm (Oval) 2x400 (Oval)
Outdoor Operating Range Cool (°CDB) - 5 to 46
Heat (°CWB) - 15 to 16
EPA Sound Power Level dBA 72
Outdoor Sound Level (H) @1m Pressure dBA (C/H) 53/56
