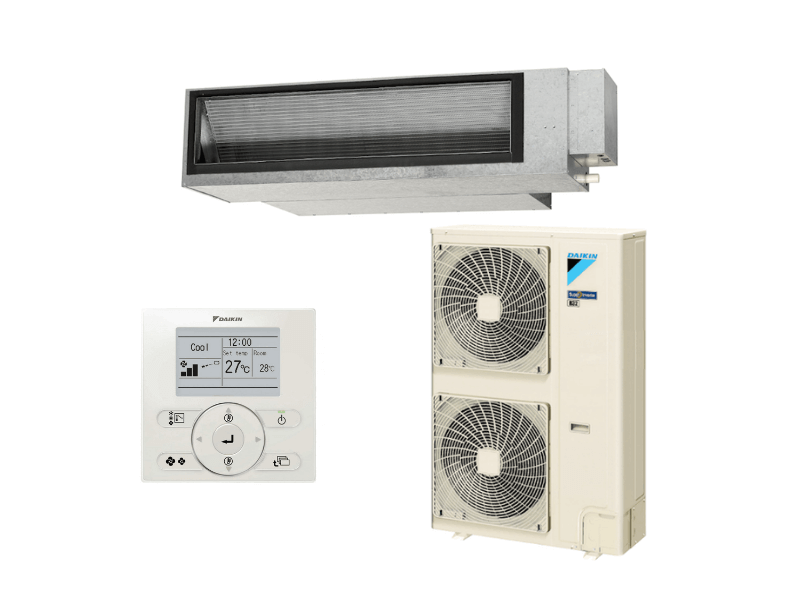

DAIKIN FDYA140AV1 / RZAS140CV1 14.0kW Premium Inverter Ducted System | Single phase
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
14kW Cooling – 16.5kW Heating Capacity

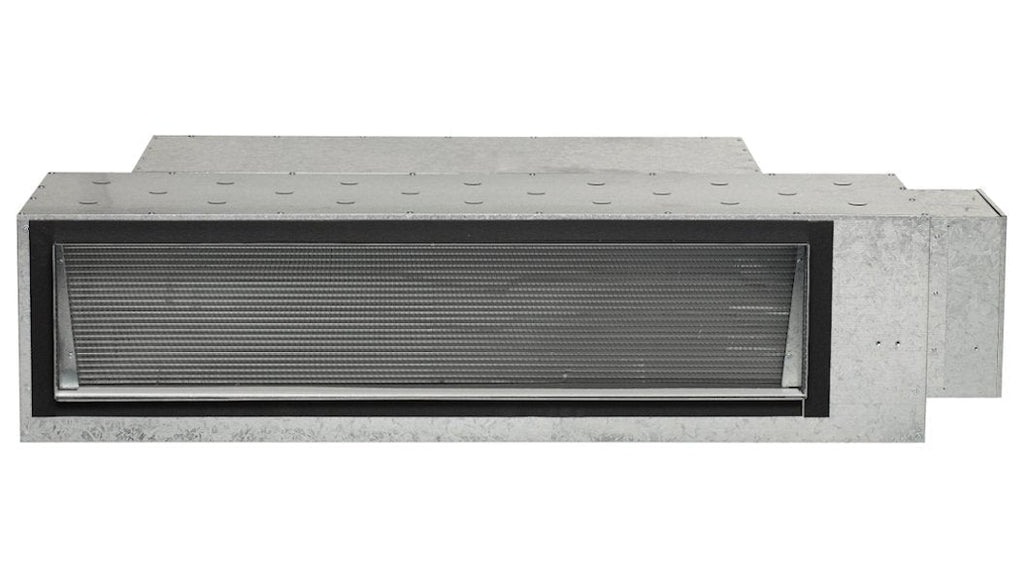

Indoor : FDYA140AV1

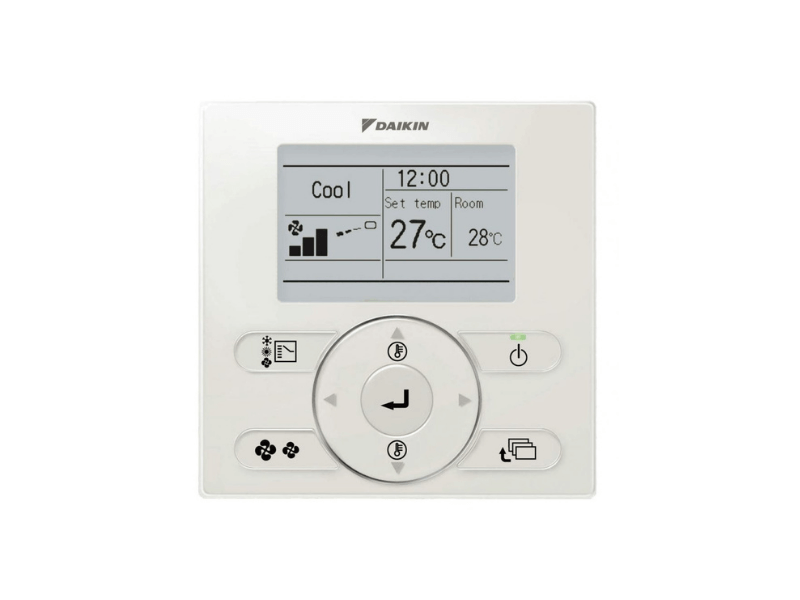

Back lit Wall Controller: BRC1E63

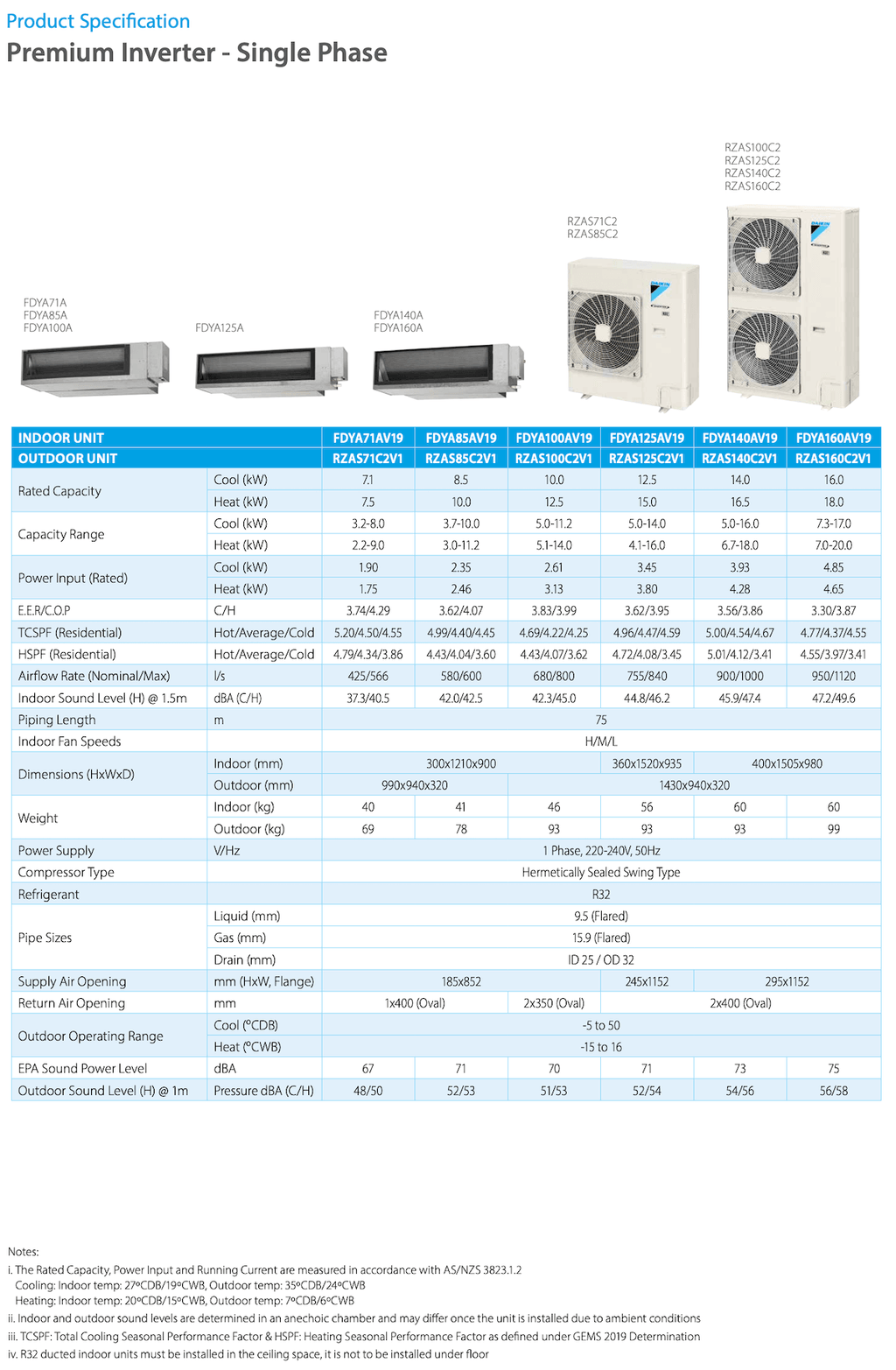

|Rated Capacity||Cool (kW)||14.0|
|Capacity Range||Cool (kW)||5.0-16.0|
|Power Input (Rated)||Cool (kW)||3.93|
|Air Flow Rate (Rated)||I/S||900|
|Indoor Sound Level (@1.5m)||dBA||45.9|
|Indoor Fan Speeds||H/M/L|
|Dimensions (HxWxD)||Indoor (mm)||400 x 1505 x 980|

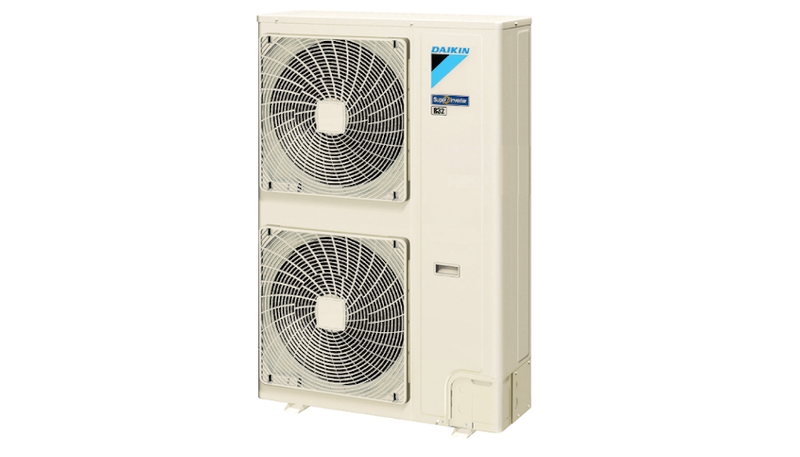

|Outdoor (mm)||1430 x 940 x 320|
|Power Supply||V/Hz||1 Phase, 220-240V, 50Hz|
|Compressor Type||Hermetically Sealed Swing Type|
|Pipe Sizes||Liquid (mm)||9.5 (Flared)|
|Gas (mm)||15.9 (Flared)|
|Drain (mm)||ID 25 / OD 32|
|Supply Air Opening||mm (HxW, Flange)||295x1152|
|Return Air Opening||mm (Oval)||2x400 (Oval)|
|Outdoor Operating Range||Cool (°CDB)||-5 to 50|
|Heat (°CWB)||-15 to 16|
|EPA Sound Power Level||dBA||73|
|Outdoor Sound Level (H) @1m||Pressure dBA (C/H)||54/56|
