Daikin 14kW Premium Slimline Ducted System 3 Phase FBA140BVMA / RZAV140CY1

DaikinModel: FBA140BVMA / RZAV140CY1

Price:
Sale price$5,779.00 Regular price$6,614.00

🚚 Check Delivery/Pickup Options For Your Postcode

Overview

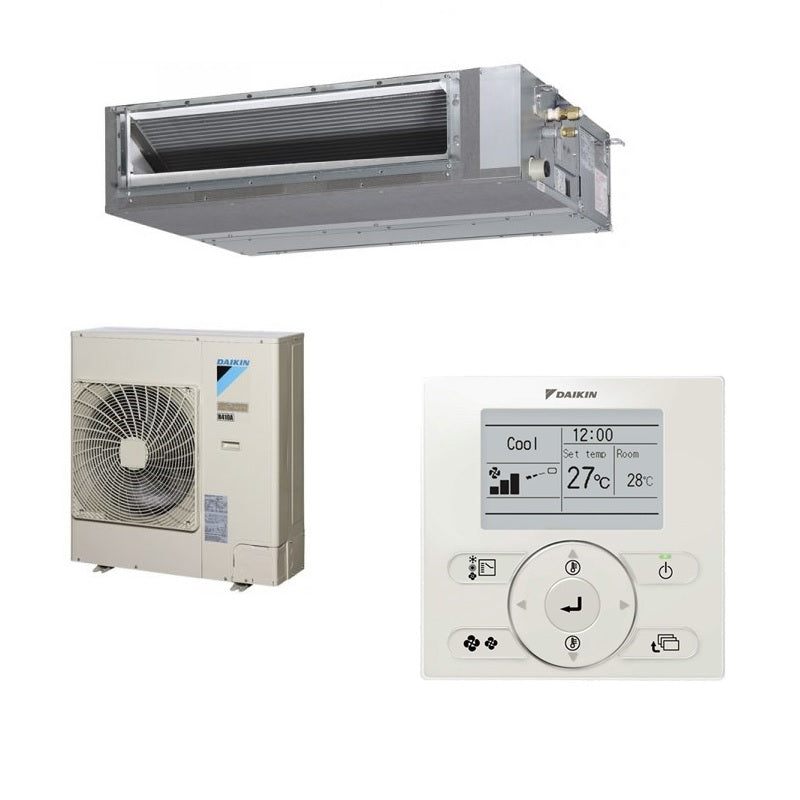

Daikin Slimline Ducted System FBA140BVMA/RZAV140CY1 – 3 Phase

Indoor Unit – FBA140BVMA
Outdoor Unit – RZAV140CY1

Cooling Capacity, Rated – 14.00
Heating Capacity, Rated – 16.00

Phase – 3 Phase

Designed specifically to suit installations where ceiling space is at a premium, our Slim-Line Ducted series has unparalleled flexibility and freedom of design.

Ideal for narrow ceiling spaces or under the floor, this ducted system meets the challenges of modern commercial and medium density apartment development.

Slim-Line Indoor
Industry leading low profile design of 245mm height ensures clearance in most narrow roof spaces.

Design Flexibility
DC fan with an static pressure of 150Pa and up to 75m (100 Class) of available pipe run to suit your design layout.

R22 Retrofit Capability
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping.

Automatic Airflow Adjustment
Allows the fan speed to adjust automatically to suit your duct design for optimum airflow distribution.

Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.

Built-in condensate pump
DC Condensate pump is equipped as standard with a 850mm lift.



Specifications

Indoor Unit FBA71BVMA FBA85BVMA FBA100BVMA FBA125BVMA FBA140BVMA FBA85BVMA
Outdoor Unit RZAV71CY1 RZAV85CY1 RZAV100CY1 RZAV125CY1 RZAV140CY1 RZAC85CV1
Rated Capacity Cool (kW) 7.1 8.5 10.0 12.5 14.0 8.5
  Heat (kW) 8.0 10.0 11.2 14.0 16.0 10.0
Capacity Range Cool (kW) 3.2-8.0 4.0-10.0 5.0-11.2 5.0-14.0 5.0-16.0 3.2-10.0
  Heat (kW) 3.5-9.0 4.1-11.2 5.1-12.5 5.1-16.0 5.1-18.0 3.5-11.2
Power Input (Rated) Cool (kW) 2.02 2.30 2.72 3.68 4.08 2.64
  Heat (kW) 1.99 2.50 2.81 3.72 4.51 2.95
E.E.R/C.O.P C/H 3.51/4.02 3.70/4.00 3.68/3.99 3.40/3.76 3.43/3.55 3.22/3.39
Airflow Rate (Rated) l/s 383 533 533 600 600 533
Indoor Sound Level (H) @ 1.5m dBA 38 38 38 40 40 38
Piping Length m 75 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 245x1000x800 245x1400x800
  Outdoor (mm) 990x940x320 1430x940x320 990x940x320
Weight Indoor (kg) 37 47 47 47 47 47
  Outdoor (kg) 69 78 93 93 99 69
Power Supply  V/Hz 3 Phase, 380-415V, 50Hz
Compressor Type   Hermetically Sealed Swing Type
Refrigerant   R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
  Gas (mm) 15.9 (Flared)
  Drain (mm) ID 25 / OD 32
Supply Air Opening  mm (HxW, Flange) 176x792 176x1192
Return Air Opening  mm (HxW, Flange) 208x952 208x1352
Outdoor Operating Range  Cool (°CDB) -5 to 50 -5 to 46
  Heat (°CWB) -15 to 16
EPA Sound Power Level  dBA 67 71 70 - - 70
Outdoor Sound Level (H) @ 1m Pressure dBA (C/H) 48/50 52/53 51/53 52/54 56/58 51/54
