DAIKIN FDYQ180LCV1 / RZYQ7TY1 18.0kW Premium Inverter Ducted System | Three phase
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
18kW Cooling – 20kW Heating Capacity
Indoor : FDYQ180LCV1

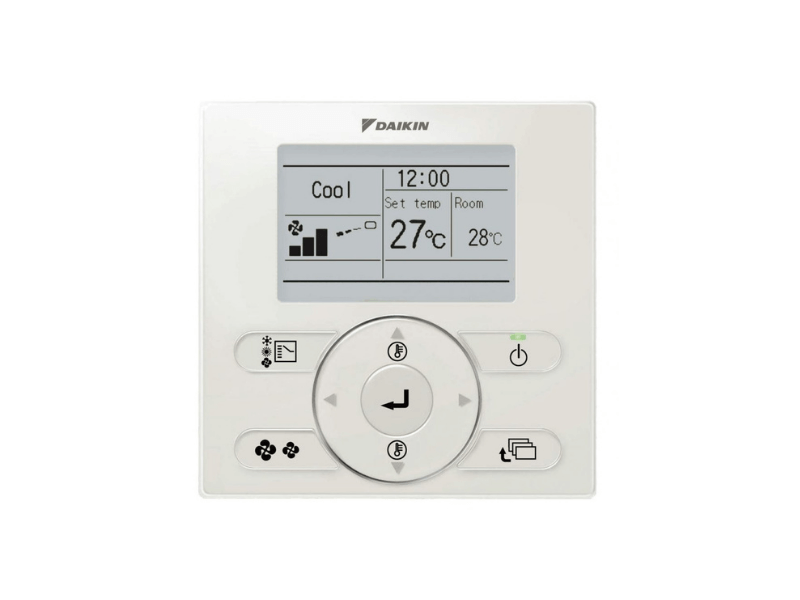

Back lit Wall Controller: BRC1E63
|Rated Capacity||Cool (kW)||18.0|
|Capacity Range||Cool (kW)||10.8-20.0|
|Power Input (Rated)||Cool (kW)||5.61|
|Air Flow Rate (Rated)||I/S||1160|
|Indoor Sound Level (@1.5m)||dBA||45|
|Indoor Fan Speeds||H/M/L|
|Dimensions (HxWxD)||Indoor (mm)||470 x 1133 x 919|
|Outdoor (mm)||1657 x 930 x 765|
|Power Supply||V/Hz||3 Phase, 380-415V, 50Hz|
|Compressor Type||Hermetically Sealed Scroll Type|
|Pipe Sizes||Liquid (mm)||9.5 (Brazed)|
|Gas (mm)||19.1 (Brazed)|
|Drain (mm)||BSP 3/4 inch Internal Thread|
|Supply Air Opening||mm (HxW, Flange)||350 x 918|
|Return Air Opening||mm (Oval)||350 x 918 (Flange)|
|Outdoor Operating Range||Cool (°CDB)||- 5 to 49|
|Heat (°CWB)||- 20 to 16|
|EPA Sound Power Level||dBA||-|
|Outdoor Sound Level (H) @1m||Pressure dBA (C/H)||56/56|
