Daikin 20kW Inverter Ducted Air Conditioner Three Phase FDYQN200

DaikinModel: FDYQN200LC-M

Price:
Sale price$5,985.00

Price inc. GST

Stock:
Limited stock available. Please call prior to placing order

Overview

Daikin 20kW Inverter Ducted System Three phase - FDYQN200LCV1 / RZQ200MY1

Best For:
Heating or cooling your entire home
Larger houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

FDYQN200LC-M 19.5kW Cooling 22.4kW Heating Inverter Ducted System | Back lit Controller 3 Phase

Indoor: FDYQN200LCV1

Outdoor: RZQ200MY1

Controller: BRC1E63

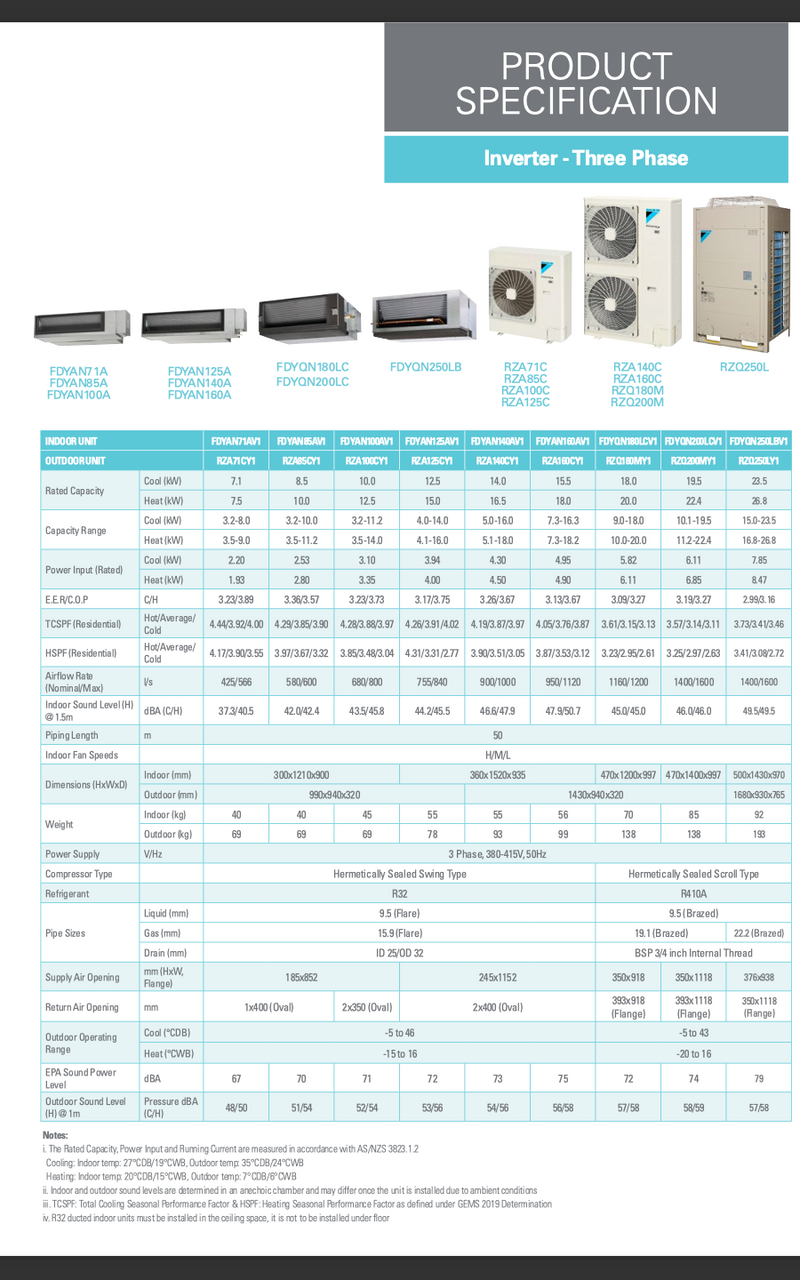

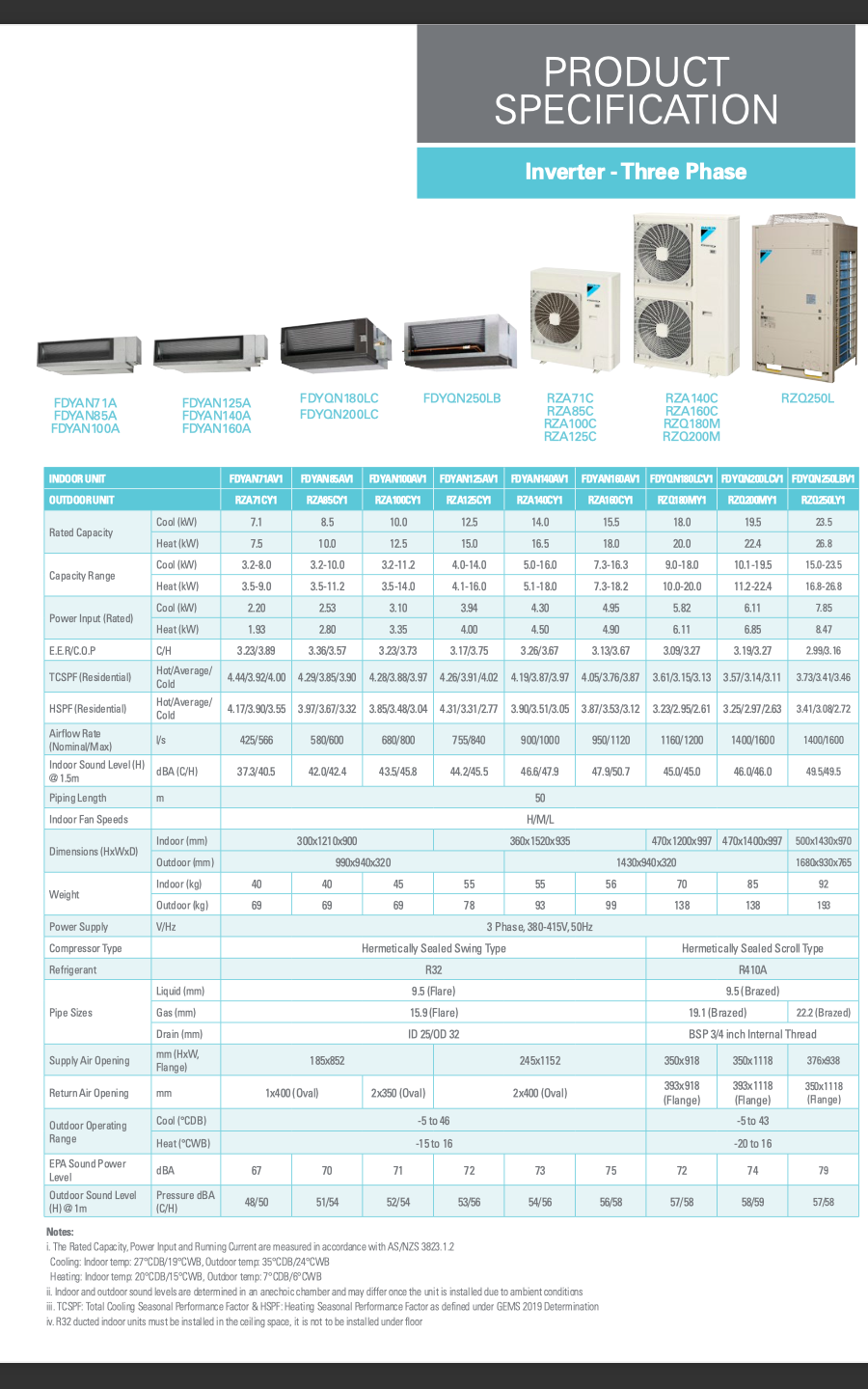

Specifications

INDOOR UNIT FDYQN200LCV1
OUTDOOR UNIT RZQ200MY1
Rated Capacity Cool (kW) 19.5
Heat (kW) 22.4
Capacity Range Cool (kW) 10.1-19.5
Heat (kW) 11.2-22.4
Power Input (Rated) Cool (kW) 6.11
Heat (kW) 6.85
E.E.R./C.O.P. Cool/Heat 3.19/3.27
Air Flow Rate (Rated) I/S 1400
Indoor Sound Level (@1.5m) dBA 46.0
Piping Length (m) 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 470x1400x997
Outdoor (mm) 1430x940x320
Weight Indoor(kg) 85
Outdoor(kg) 138
Power Supply V/Hz 3 Phase, 380-415v, 50Hz
Compressor Type   Hermetically Sealed Scroll Type
Refrigerant   R410A
Pipe Sizes Liquid (mm) 9.5 (Brazed)
Gas (mm) 19.1 (Brazed)
Drain (mm) BSP 3/4 inch Internal Thread
Supply Air Opening mm (HxW, Flange) 350x1118
Return Air Opening mm (Oval) 393x1118 (Flange)
Outdoor Operating Range Cool (°CDB) - 5 to 43
Heat (°CWB) - 20 to 16
EPA Sound Power Level dBA -
Outdoor Sound Level (H) @1m Pressure dBA (C/H) 58/59
