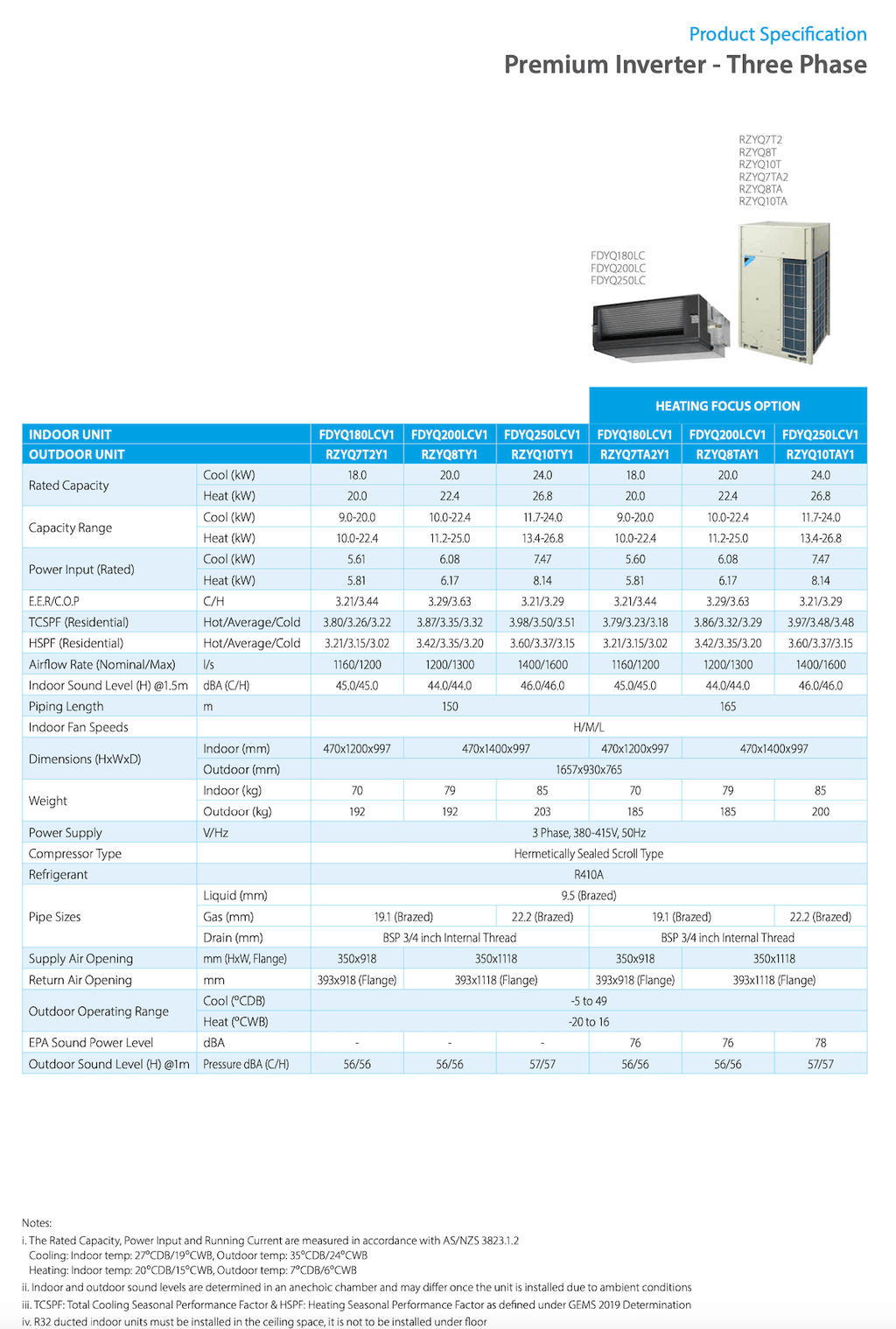

|Rated Capacity||Cool (kW)||24.0|
|Capacity Range||Cool (kW)||15.0-24.0|
|Power Input (Rated)||Cool (kW)||7.47|
|Air Flow Rate (Rated)||I/S||1400|
|Indoor Sound Level (@1.5m)||dBA||46|
|Indoor Fan Speeds||H/M/L|
|Dimensions (HxWxD)||Indoor (mm)||470 x 1333 x 919|
|Outdoor (mm)||1657 x 930 x 765|
|Power Supply||V/Hz||3 Phase, 380-415V, 50Hz|
|Compressor Type||Hermetically Sealed Scroll Type|
|Pipe Sizes||Liquid (mm)||9.5 (Brazed)|
|Gas (mm)||22.2 (Brazed)|
|Drain (mm)||BSP 3/4 inch Internal Thread|
|Supply Air Opening||mm (HxW, Flange)||350 x 1118|
|Return Air Opening||mm (Oval)||393 x 1118 (Flange)|
|Outdoor Operating Range||Cool (°CDB)||-5 to 49|
|Heat (°CWB)||-20 to 16|
|EPA Sound Power Level||dBA||-|
|Outdoor Sound Level (H) @1m||Pressure dBA (C/H)||57/57|
DAIKIN FDYQ250LCV1 / RZYQ10TY1 25.0kW Premium Inverter Ducted System | Three phase
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
24kW Cooling – 26.8kW Heating Capacity
Indoor : FDYQ250LCV1

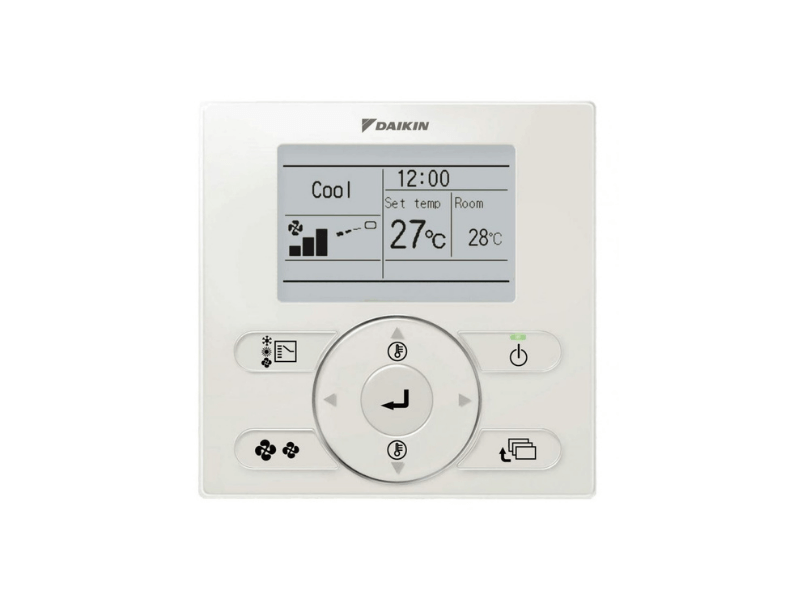

Back lit Wall Controller: BRC1E63
