Daikin 16kW Inverter Ducted Air Conditioner FDYAN160

DaikinModel: FDYAN160AV1 / RZA160CV1

Sale price$5,640.00 Regular price$6,453.00

🚚 Check Delivery/Pickup Options For Your Postcode


DAIKIN FDYAN160A-CV C15.5kW H18kW Inverter Ducted System | 1 Phase

Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Indoor: FDYAN160AV1
Outdoor: RZA160CV1
Controller: BRC1E63

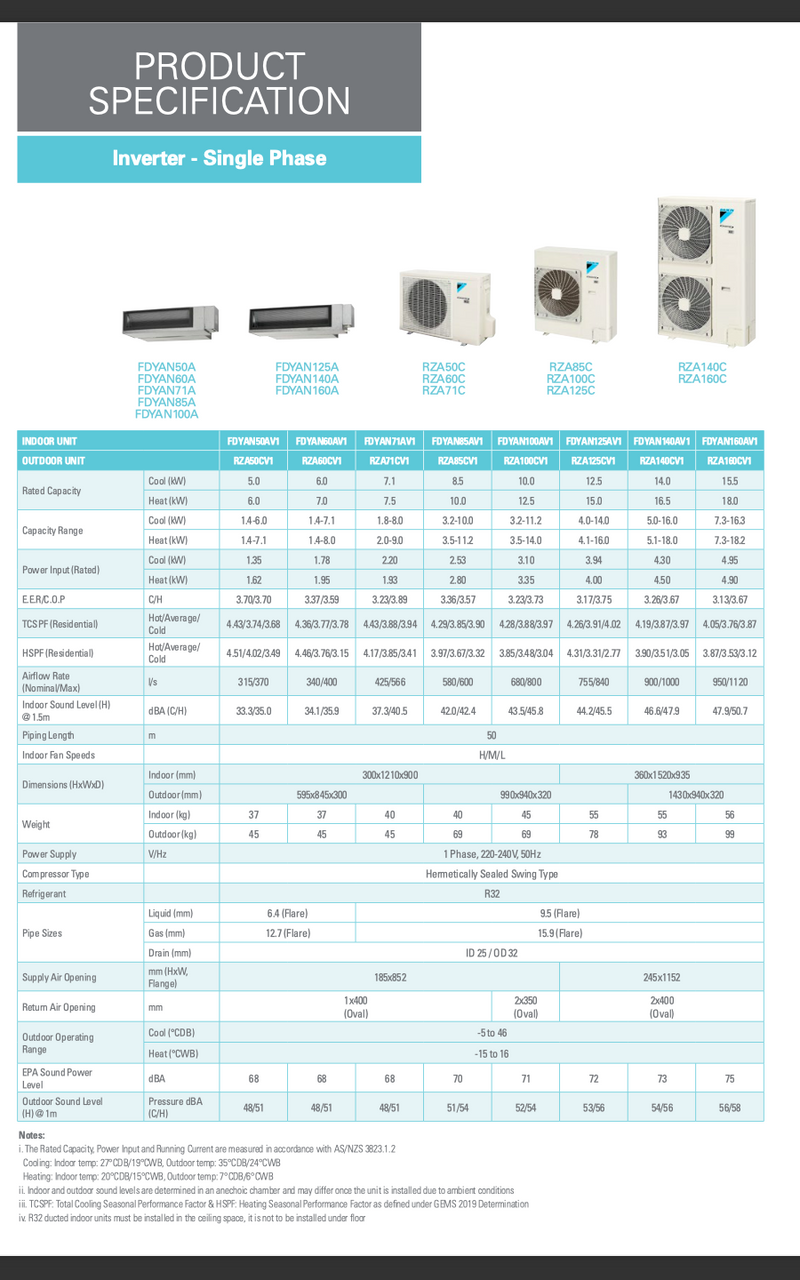

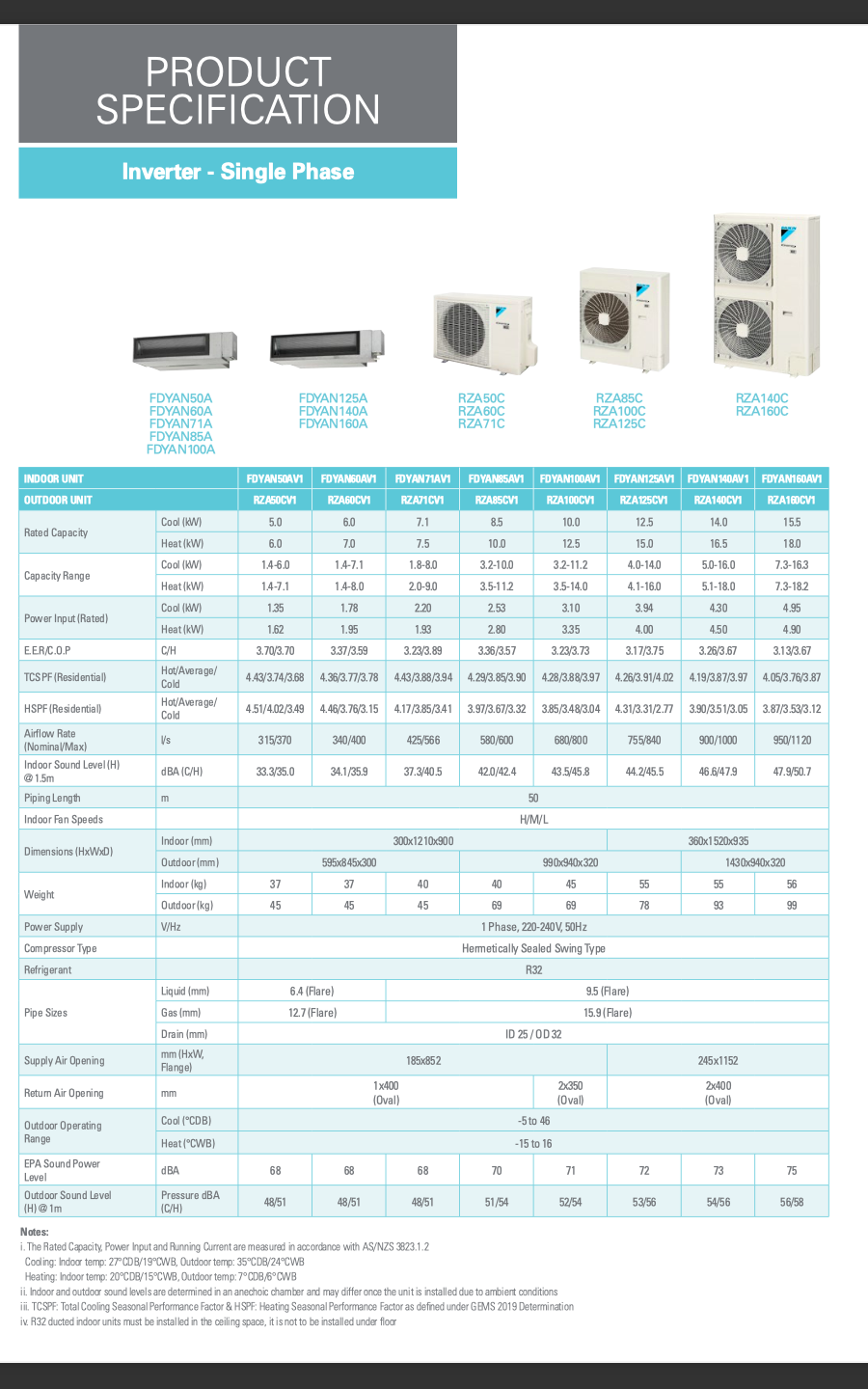

Rated Capacity Cool (kW) 15.5
Heat (kW) 18.0
Capacity Range Cool (kW) 7.3-16.3
Heat (kW) 7.3-18.2
Power Input (Rated) Cool (kW) 4.95
Heat (kW) 4.90
E.E.R./C.O.P. Cool/Heat 3.13/3.67
Air Flow Rate (Rated) I/S 950
Indoor Sound Level (@1.5m) dBA 47.9/50.7
Piping Length (m) 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 360x1520x935
Outdoor (mm) 1430x940x320
Weight Indoor(kg) 56
Outdoor(kg) 99
Power Supply V/Hz 1 Phase, 220-240V, 50Hz
Compressor Type   Hermetically Sealed Swing Type
Refrigerant   R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
Gas (mm) 15.9 (Flared)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 245x1152
Return Air Opening mm (Oval) 2x400 (Oval)
Outdoor Operating Range Cool (°CDB) - 5 to 46
Heat (°CWB) - 15 to 16
EPA Sound Power Level dBA 75
Outdoor Sound Level (H) @1m Pressure dBA (C/H) 56/58
