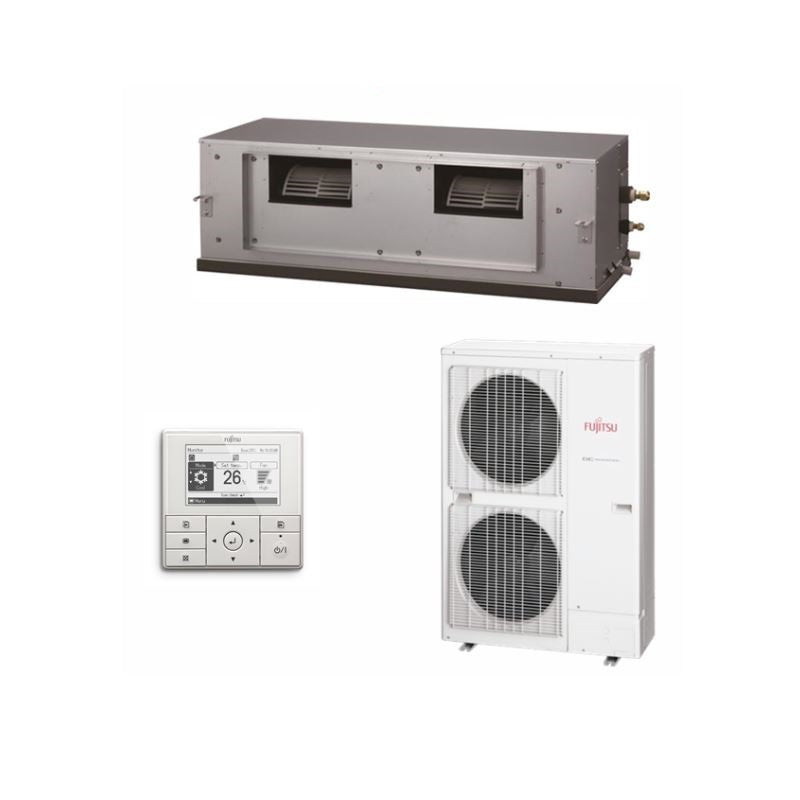

Fujitsu 10.5kW Inverter Ducted System High Static SET-ARTG36LHTA

FujitsuModel: ARTG36LHTA / AOTG36LATL

Sale price$3,929.00 Regular price$4,496.00

🚚 Check Delivery/Pickup Options For Your Postcode


FUJITSU SET-ARTG36LHTA 10.5kW Inverter Ducted System High Static 1 Phase

Fujitsu 10.5kW Cool – 12.1kW Heat / Inverter. Ducted. Single Phase. Indoor ARTG36LHTA – Outdoor AOTG36LATL

Wired Back lit Controller : UTY-RVNYN

10.5 kW Cooling
12.1 kW Heating

Automatic Air Flow Adjustment


Indoor unit ARTG36LHTA
Outdoor unit AOTG36LATL
Operation Type Reverse Cycle
Power Source V/Ph/Hz 240 / 1 / 50
Cooling Capacity kW (Rated (Min – Max)) 10.50 (5.0 – 11.4)
Heating Capacity kW (Rated (Min – Max)) 12.10 (5.1 – 14.0)
Input Power Cooling kW (Rated (Max)) 3.18 (4.67)
Input Power Heating kW (Rated (Max)) 3.3 (4.8)
EER Cooling kW/kW 3.3
COP Heating kW/kW 3.67
Star Rating Cooling (0-10) (Hot / Average / Cold) 2.5 / 2.5 / 2.5
Star Rating Heating (0-10) (Hot / Average / Cold) 2.5 / 2.5 / 2.0
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.44 / 4.141 / 4.289
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.476 / 4.012 / 3.555
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.751 / 4.833 / 5.157
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.48 / 4.2 / 3.806
Running Current amps (Cooling / Heating) 13.4 / 13.9
Moisture Removal l/hr 1.5
Indoor Sound Pressure Cooling dBA (High / Low) 41 / 36
Indoor Sound Pressure Heating dBA (High / Low) 41 / 36
Outdoor Sound Pressure dBA (Cooling / Heating) 52 / 54
Outdoor Sound Power dBA 68
Static Pressure Range PA (Min to Max) 60 to 210
Air Circulation (Indoor – High Fan) Cooling l/sec 695
Air Circulation (Indoor – High Fan) Heating l/sec 695
Indoor Unit Dimensions mm (Height x Width x Depth) 400 x 1050 x 500
Indoor Unit Weight kg 39.00
Outdoor Unit Dimensions mm (Height x Width x Depth) 1290 x 900 x 330
Outdoor Unit Weight kg 86.00
Piping Connects mm Ø (Liquid / Gas) 9.52 / 15.88
Pipe Length m (Max (Precharged)) 50 (20)
Max Height Difference m 30
Operation Range Cooling °CDB (Min to Max) -5 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R410A
Refrigerant Amount g 3,350


Automatic Air Flow Adjustment

When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.

Economy mode

Limits the maximum operation current, and performs operation with the power consumption suppressed.

Control Port

External inputs and outputs contained within the product allow on/off control, fresh air interlock connection and heater bank element connection. UTD-ECS5A* (optional parts). * Selected ducted units only.


With All DC, electricity loss is decreased and power consumption reduced.


The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.

Fresh air intake

Fresh air can be taken in by a fan which can be connected using UTD-ECS5A* (optional parts). *Selected ducted units only

Weekly Timer

Different on-off times can be set for up to 7 days.

Auto Restart

Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.

Filter sign

Indicates the filter cleaning period by lamp.

ON-OFF Timer

ON-OFF timer can be set to operate once every 24 hours.

Blue Fin Heat Exchanger

Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.

Connectable Distributing Duct

Conditioned air can be distributed to adjacent areas by means of a distribution duct.

Connectable Fresh Air Duct

Allows introduction of fresh air to occupied space.
