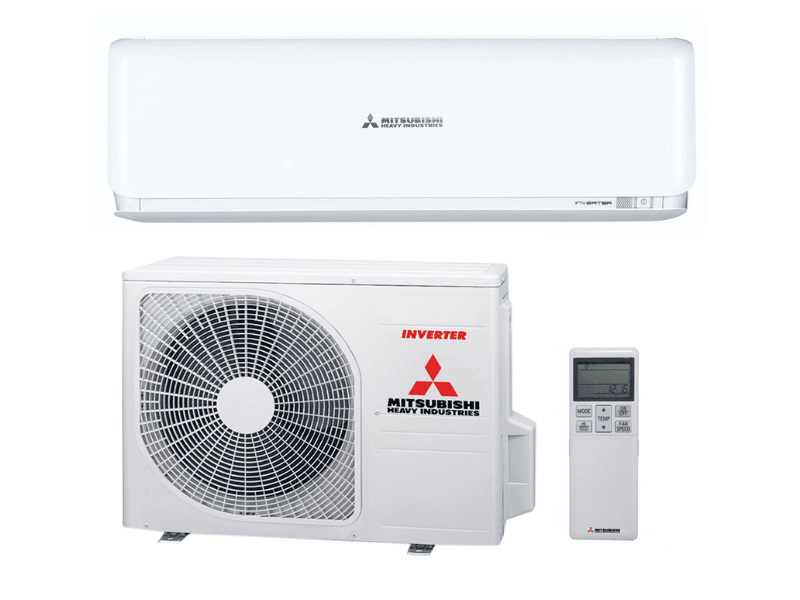

Mitsubishi Heavy Industries Avanti Plus C6.1kW H6.8kW Reverse Cycle Inverter Split System SRK60ZSXA-W / SRC60ZSXA-W
With an industry leading high energy ratings the Avanti PLUS® is our Platinum Series. Whisper quiet and incorporating a range of energy saving and convenient features and functions such as motion sensor, eco-operation and adjustable LED display the 6kW Avanti PLUS® split system also boasts an industry leading 17m long reach airflow making it perfect for medium to large spaces.
Key features
- Long reach 17m airflow (in cooling mode)
- Industry leading energy efficiency
- Whisper quiet operation
- Clean Air Technology to capture smoke particles and deliver allergen and odour free air
- Energy saving motion sensor and eco operation
Avanti Plus Series Brochure.pdf
Features
Fuzzy Auto Mode | Eco Operation |
Jet Air Technology | High Power Operation |
3D Auto | Auto Louvre Mode |
Memory Louvre | Up/Down Louvre Swing |
Right/Left Louvre Swing | Positioning of Installation |
Allergen Clear Operation | Self-Clean Operation |
Photocatalytic Washable Deodorising Filter | Allergen Filter |
Removable Cover Panel | Dry Operation |
Silent Operation | Night Setback |
Comfort Start-up | Weekly Timer |
Sleep Timer | On/Off Timer |
Preset Operation | Child Lock |
LED Brightness Adjustment | Auto Operation |
Microcomputer -Operated Defrosting | Self- Diagnostic Function |
Back-up Switch | Auto Restart Function |
Specifications
Indoor | SRK60ZSXA-W | ||
Outdoor | SRC60ZSXA-W | ||
Power Supply | 1 Phase 220-240V 50Hz | ||
Capacity | Cooling T1 | kW | 6.1 (1.0 - 6.9) |
Heating H1 | 6.8 (0.8 - 8.8) | ||
Input | Cooling T1 | kW | 1.71 (0.19 - 2.50) |
Heating H1 | 1.65 (0.20 - 2.86) | ||
Running Current | Cooling T1 | A | 7.2 |
Heating T1 | 6.9 | ||
Maximum Power Consumption | kW | 2.9 | |
EER | Cooling T1 | 3.57 | |
COP | Heating H1 | 4.12 | |
Sound Power Level (JIS C9612) | Cooling (Outdoor) | dB(A) | 65 |
Sound Pressure Level (JIS C9612) | Cooling (Indoor) | dB(A) | 48 - 41 - 33 - 22 |
Heating (Indoor) | 52 | ||
Airflow | Cooling (Indoor) | l/s | 272 - 223 - 148 - 90 |
Heating (Indoor) | 297 - 228 - 182 - 103 | ||
External dimensions (HxWxD) | Indoor | mm | 305 x 920 x 220 |
Outdoor | 640 x 800 (+71) x 290 | ||
Net weight | Indoor | kg | 13 |
Outdoor | 45 | ||
Refrigerant Piping | Liquid Line | mm | Ø6.35 |
Gas Line | Ø12.7 | ||
Connection Method | Flare Connection | ||
Refrigerant R32 | Quantity | kg | 1.3 |
Pre-charged to the pipe length | m | 15 | |
Maximum pipe length | m | 30 | |
The maximum vertical height difference | m | 20 |
