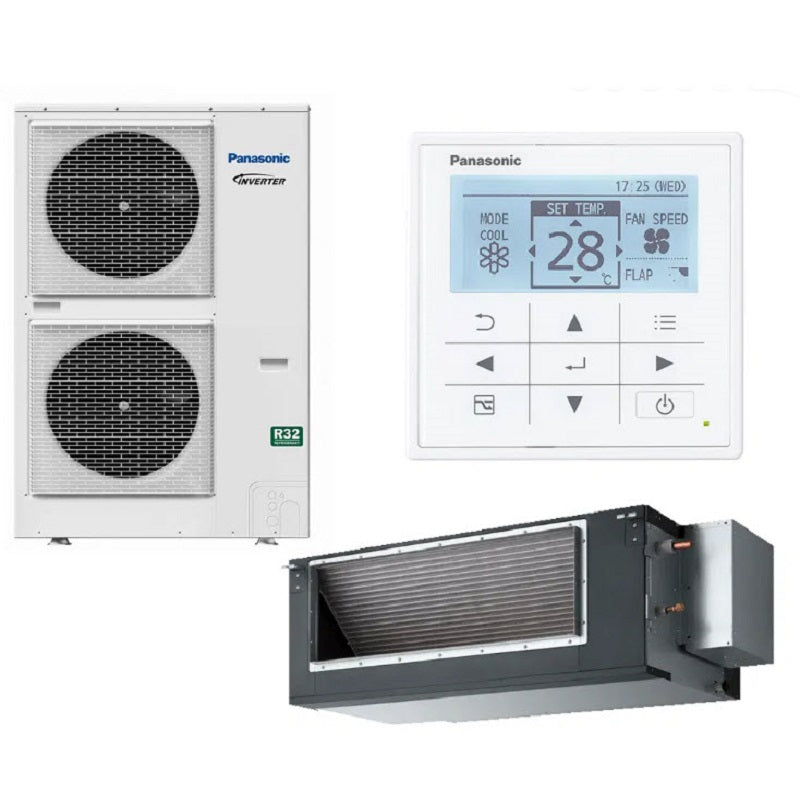

Panasonic 10kW High Static Ducted System 3 Phase R32 S-100PE3R / U-100PZH3R8

PanasonicModel: S-100PE3R / U-100PZH3R8

Sale price$4,996.00 Regular price$5,718.00

🚚 Check Delivery/Pickup Options For Your Postcode


Panasonic High Static Ducted System 10kW S-100PE3R / U-100PZH3R8 | 3 Phase R32

Includes CZ-RTC5B Wired Controller

10.0 kW Cooling
11.2 kW Heating

High Efficiency | Deluxe Model

Click here to view the brochure of Panasonic Ducted System


Cooling (kW): 10.0 (3.1 – 12.5)
Heating (kW): 11.2 (3.1 – 14.0)
Airflow (l/sec) H/M/L: 668/584/484
Indoor Dimensions H x W x D (mm): 360 x 1200 x 700
Outdoor Dimensions H x W x D (mm): 1416 x 940 x 340
Power Supply (V/Ph.Hz): 415/3/50
Power Supply Connection: Outdoor
Max Amps Outdoor Amps Per Phase: 9.7
Refrigeration Type: R32
Pipe Sizes (liquid /Gas mm): 9.52 / 15.88
Min / Max Pipe Run (m): 5 / 85
Pre Charged Pipe Run (m): 30
Add Ref Charge (g/m): 45
Max Elevation – OU Higher / Lower than IU (m): 30 / 15
Supply Air Connection H x W (mm): 266 x 1024
Return Air Connection H x W (mm): 266 x 1024
Weight Indoor / Outdoor (kg): 37 / 99
