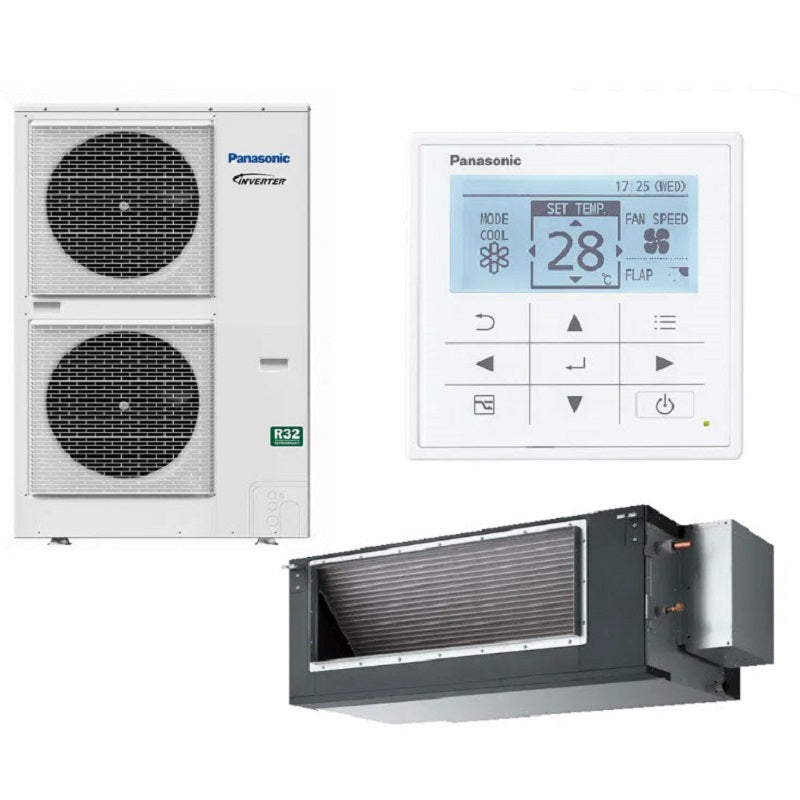

Panasonic High Static Ducted System 10kW S-100PE3R / U-100PZH3R5 | 1 Phase R32
Includes CZ-RTC5B Wired Controller
10.0 kW Cooling
11.2 kW Heating
High Efficiency | Deluxe Model
|Cooling (kW):||10.0 (3.1 – 12.5)|
|Heating (kW):||11.2 (3.1 – 14.0)|
|Airflow (l/sec) H/M/L:||668/584/484|
|Indoor Dimensions H x W x D (mm):||360 x 1200 x 700|
|Outdoor Dimensions H x W x D (mm):||1416 x 940 x 340|
|Power Supply (V/Ph.Hz):||240/1/50|
|Power Supply Connection:||Outdoor|
|Max Amps Outdoor:||27.4|
|Pipe Sizes (liquid /Gas mm):||9.52 / 15.88|
|Min / Max Pipe Run (m):||5 / 85|
|Pre Charged Pipe Run (m):||30|
|Add Ref Charge (g/m):||45|
|Max Elevation – OU Higher / Lower than IU (m):||30 / 15|
|Supply Air Connection H x W (mm):||266 x 1024|
|Return Air Connection H x W (mm):||266 x 1024|
|Weight Indoor / Outdoor (kg):||37 / 99|
