Panasonic 18kW 3 Phase Inverter Ducted S-180PE3R5B / U-180PZH2R8

PanasonicModel: S-180PE3R5B / U-180PZH2R8

Sale price$6,141.00

Price inc. GST

In stock

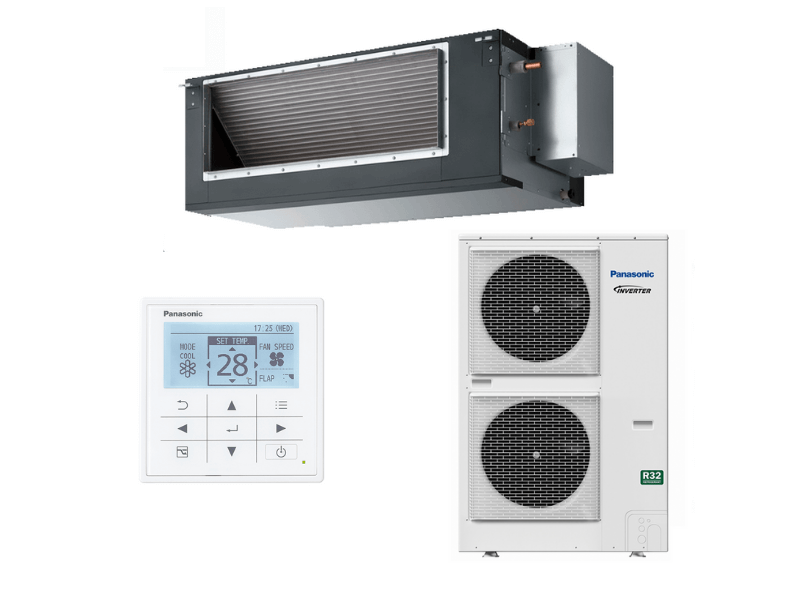

Panasonic Premium Ducted System 18kW S-180PE3R5B / U-180PZH2R8 | 3 Phase R32

The Panasonic 18kW high static and large airflow ducted with exceptional installation flexibility.


  • Outstanding operating range
  • Cold draft reduction technology

18kW Cooling – 20kW Heating Capacity


Panasonic High Static Ducted System 18kW

Indoor: S-180PE3R5B

Outdoor: U-180PZH2R8  | Three Phase R32

Includes CZ-RTC5B Wired Controller


Cooling (kW): 18.0 (5.5 – 20.0)
Heating (kW): 20.0 (5.5 – 22.4)
Airflow (l/sec) H/M/L: 1200/1050/883
Indoor Dimensions H x W x D (mm): 486 x 1456 x 916
Outdoor Dimensions H x W x D (mm): 1500 x 980 x 370
Power Supply (V/Ph.Hz): 415/3/50
Power Supply Connection: Outdoor
Max Amps Outdoor Amps Per Phase: 11.5
Refrigeration Type: R32
Pipe Sizes (liquid /Gas mm) Under 50m / Over 50m: (9.52 / 19.05) / (9.52 / 25.4)
Min / Max Pipe Run (m): 5 / 75
Pre Charged Pipe Run (m): 30
Add Ref Charge (g/m) Under 50m / Over 50m: 45 / 60
Max Elevation – OU Higher / Lower than IU (m): 30 / 30
Supply Air Connection H x W (mm): 320 x 964
Return Air Connection H x W (mm): 300 x 1070
Weight Indoor / Outdoor (kg): 85 / 115
