Overview

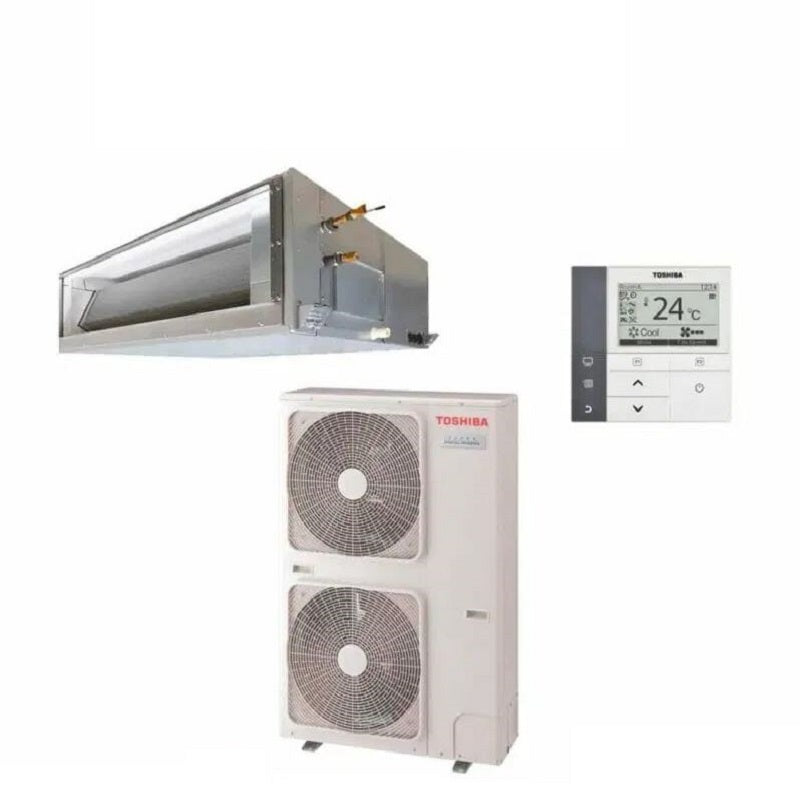

TOSHIBA RAV-GM1601DTP-A / RAV-GM1601AT8P-A 14.0kW Digital Inverter High Static Ducted Air Conditioner System 3 Phase
Indoor: RAV-GM1601DTP-A
Outdoor: RAV-GM1601AT8P-A
Wired Control with Weekly Timer : RBC-AMS41E
14 kW Cooling
16 kW Heating
DIGITAL INVERTER HIGH STATIC | R32
Specifications
Indoor Model | RAV-GM1601DTP-A | |
Outdoor Model | RAV-GM1601AT8P-A | |
Cooling Capacity (Range) | kW | 14.0 [3.0 – 16.0] |
EER | 3.20 | |
Heating Capacity (Range) | kW | 16.0 [3.0 – 18.0] |
COP | 3.86 | |
Maximum Operating Current | A | 16.10 |
Air flow (H / M / L) | l/s | 972 / 902 / 597 |
External Static | Pa | 50 – 270 |
Dimensions – Indoor (H x W x D) | mm | 298 x 1400 x 750 |
Dimensions – Outdoor (Hx W x D) | mm | 1340 x 900 x 320 |
Weight – Indoor / Outdoor | kg | 42 / 96 |
Sound Pressure Level Indoor / Outdoor | dB(A) | 50 / 57 |
Operating Range Cooling | °C db | -15 to 46 |
Operating Range Heating | °C db | -15 to 24 |
Pipe Sizes (Liquid / Gas) | mm | 9.52 / 15.88 |
Maximum Pipe Length / Lift | m | 50 / 30 |
Maximum Pre-charged Length | m | 30 |
Power Supply | 3ph/380-415V/50Hz |
